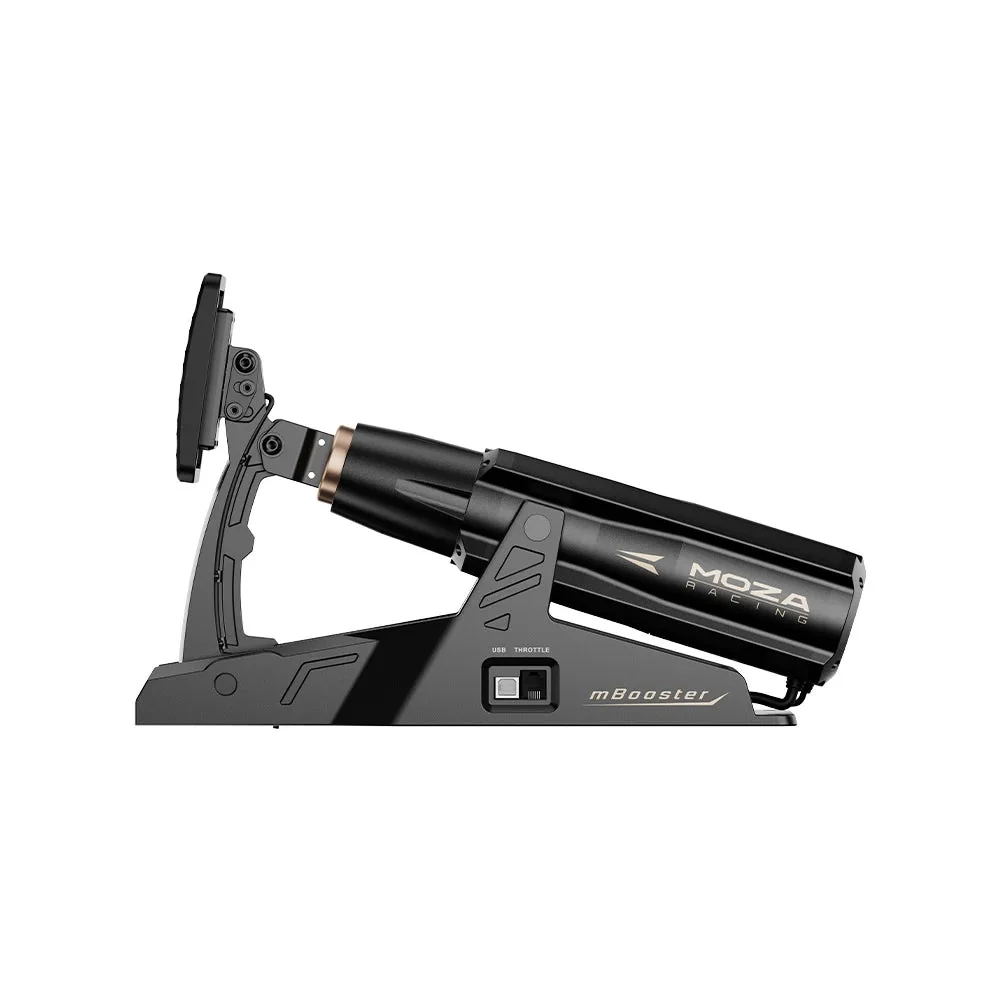

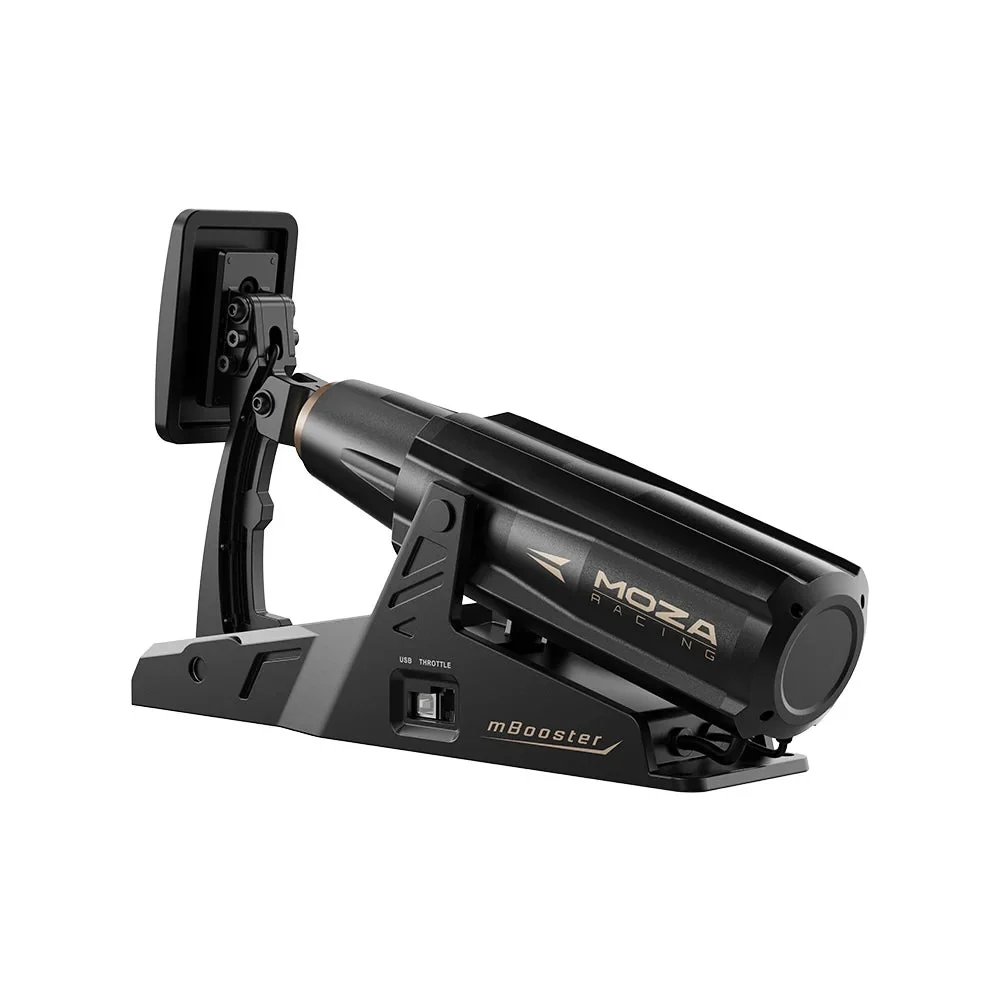

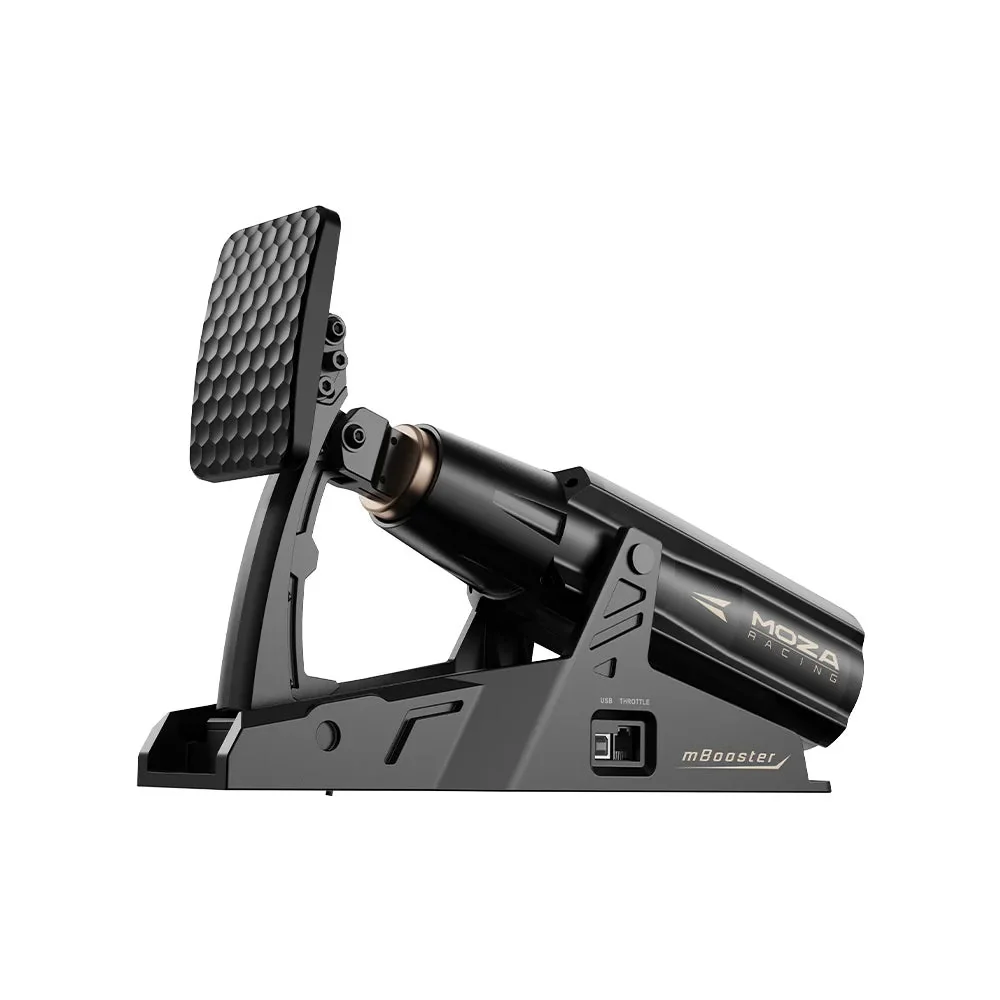

The MOZA mBooster Active Pedal is a revolutionary motorized simulation component that replaces traditional springs and elastomers with a high-torque servo motor and ball screw drive system. By utilizing real-time telemetry data, it generates active force feedback to simulate complex vehicle dynamics such as ABS pulsation, traction control intervention, and engine vibrations directly through the footplate.

Key Features

• Active Force Feedback: Powered by a 270W peak power motor, the pedal provides dynamic resistance and haptic effects that mimic the mechanical feel of professional race car systems.
• Digital Customization: Users can adjust travel, damping, friction, and entry/exit force curves instantly via the MOZA Pit House software without requiring manual hardware swaps.
• High-Resolution Sensor Fusion: Combines dual 200kg load cell sensors with a 15-bit angle sensor to deliver ultra-precise input detection and consistent braking performance with zero dead zones.

Technical Specifications

• Compatibility: PC (Windows 10/11); Connects via USB to PC or RJ45 to compatible MOZA Wheel Base units.
• Material: Aviation-grade Aluminum Alloy with biomimetic curved footplate.
• Actuation System: High-torque density motor with industrial-grade ball screw and rail-free design.
• Pressure Sensitivity: Dual 200kg Load Cells (400kg total sensing capacity).
• Adjustability: 0–25° Travel Range and 0–15° Angle Adjustment.

What's Included

• MOZA mBooster Active Pedal Unit
• External 48V Power Supply
• USB Type-B to Type-A Cable
• RJ11/RJ45 Data Cables
• Installation Hardware and Tool Kit
