Simucube Co-Pedal

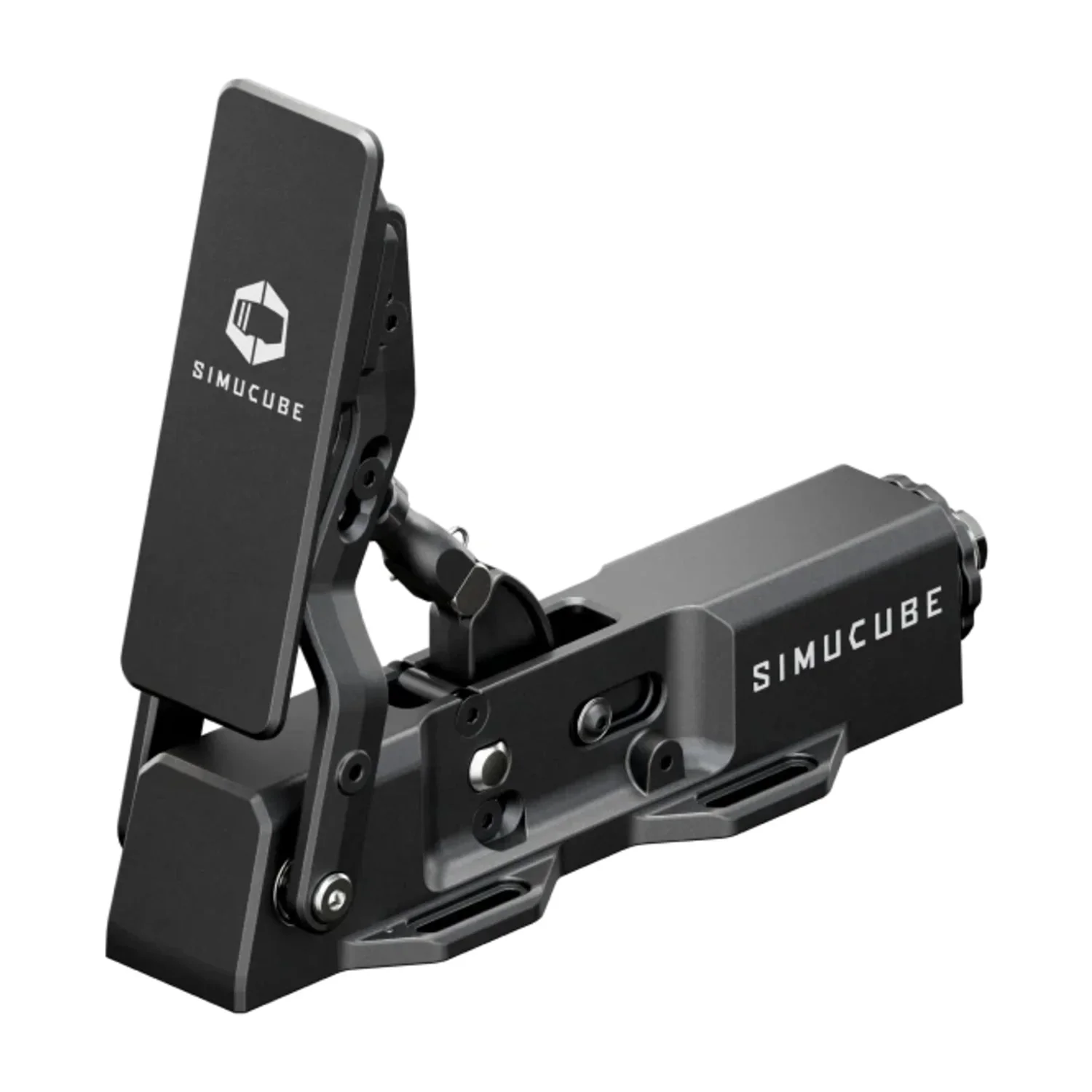

The Simucube Co-Pedal is a high-performance passive pedal designed to integrate with the Simucube ActivePedal ecosystem. Constructed with a rigid shell frame to eliminate flex, this modular unit utilizes patented mechanical Arc profiles to function as either a throttle or a clutch. Positional measurement is driven by a motorsport-inspired hall angle sensor, ensuring dead-zone-free telemetry and consistent signal feedback across the entire articulation path.
Key Features

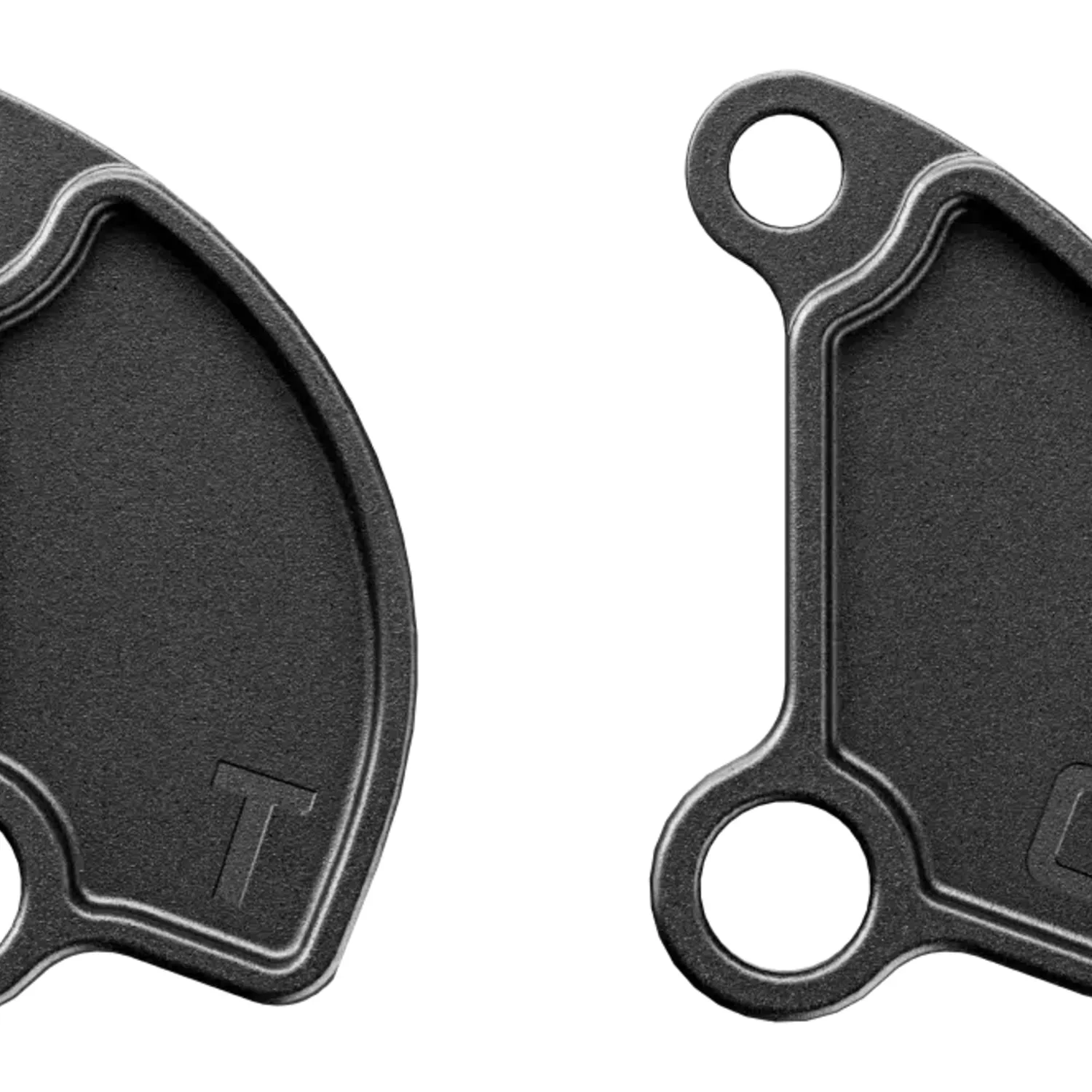

- Arc Technology: Modular system allows structural conversion between a linear throttle profile and an authentic clutch profile with a distinct mechanical bite point within 60 seconds.
- Hall Angle Sensor: Measures the physical angle of the pedal rather than force, delivering precise position tracking similar to drive-by-wire motorsport systems.
- Rigid Shell Frame: Redesigned structural chassis minimizes mechanical deflection under pressure to preserve input accuracy.
- Comprehensive Mechanical Adjustability: Allows physical tuning of the pedal preload, travel distance, stem length, pedal face angle, and face height using the included tools.
Technical Specifications
- Compatibility: Simucube ActivePedal Pro / Simucube ActivePedal Ultimate
- Material: Precision-machined metal, ultra-precision manufactured Arc profiles
- Dimensions: 242 mm x 83 mm x 308 mm
- Weight: 1.6 kg
- Adjustable Travel: 30 mm / 50 mm / 70 mm
- Rest Angle: 4 to 14 degrees
- Preload Range: 0 to 13 mm (approximately 0 to 5 kg)
- Maximum Throttle Force: 11 kg / approximately 110 N (at 100% preload and 70 mm travel)
- Maximum Clutch Force: 25 kg / approximately 250 N (at 100% preload and 70 mm travel)

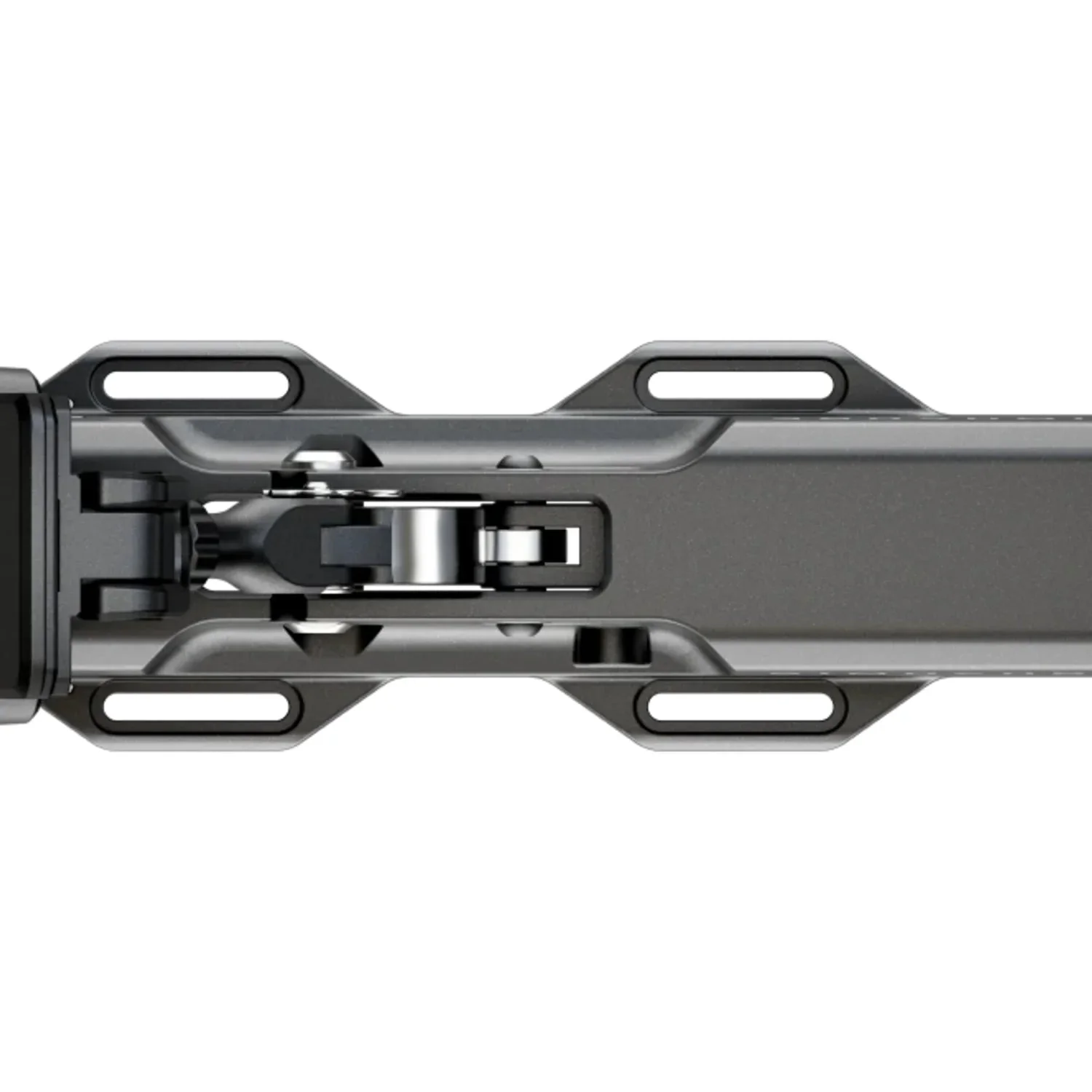

- Mounting: 4x M5 slot configuration for aluminum profiles and baseplates
What's Included
- 1x Simucube Co-Pedal (preassembled as throttle)
- 1x Clutch pedal face (ActivePedal Ultimate pedal face)
- 1x Clutch spring (stiffer than throttle spring)
- 1x Clutch Arc profile
- 1x RJ25 cable (60 cm)
- 1x Fastener set for aluminium profile and baseplate mount
- 1x 4mm Hex key with ball-tip and T-handle
- 1x Special tool for pre-load screw
- 1x Quick start guide
